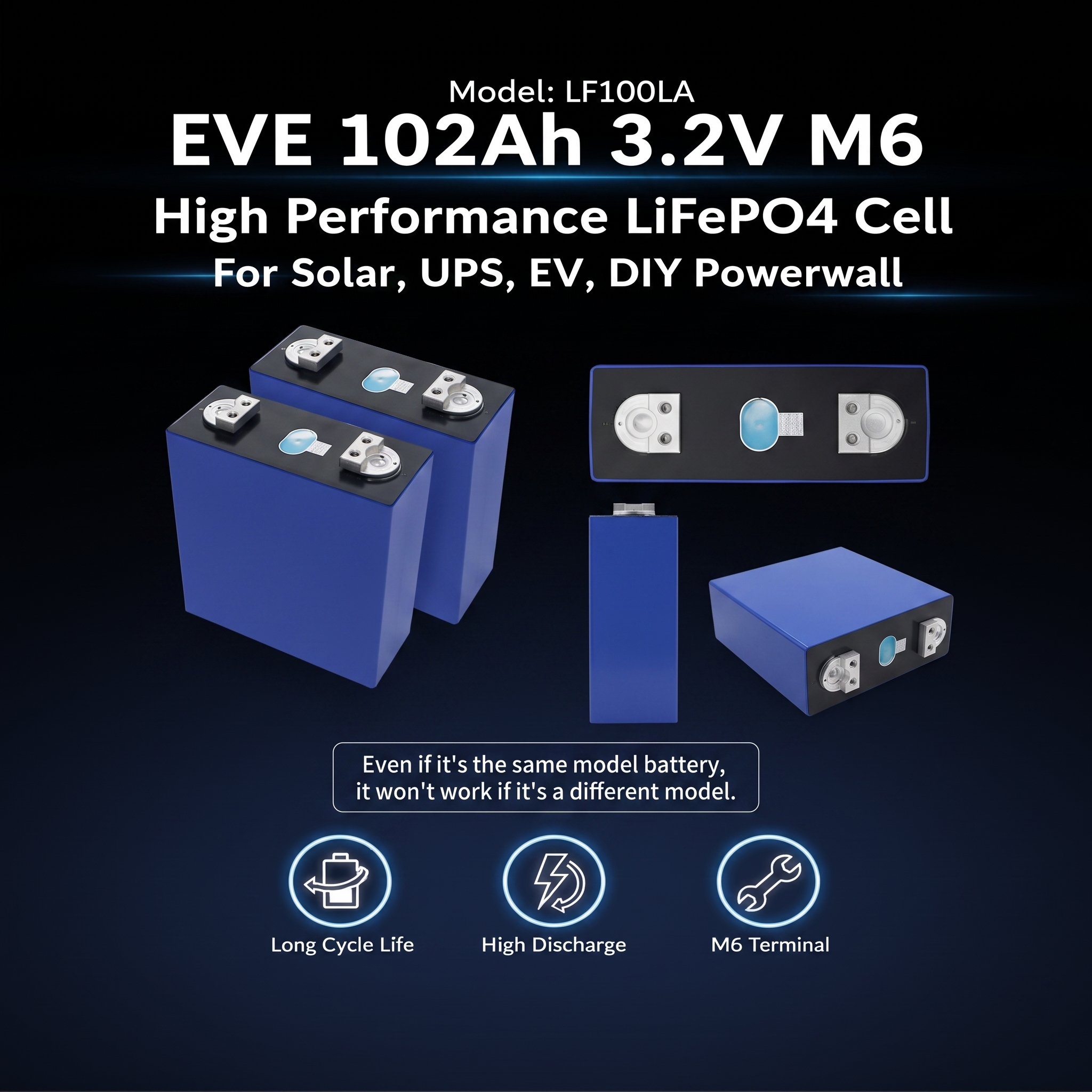

EVE LF100LA 102Ah M6 (NEW A+ Grade) Lithium Iron Phosphate LiFePO4 Battery 3.2V 5000 Cycles
Suggested Products
The EVE LF100LA 102Ah Grade A+ LiFePO4 Prismatic Battery Cell with factory welded M6 terminals provides reliable, long-cycle energy storage for solar power plants, home IPS, and RV off-grid systems.
Key Features:
Grade A+ Brand New Cell: Guaranteed 100% capacity with low internal resistance.
M6 Screw Terminals: Easy busbar connection without needing spot welding.
5000+ Deep Cycles: Superior lifespan compared to lead-acid batteries.
Specification
Battery Brand: EVE
Battery Model: LF100LA
Min. Capacity: 100Ah
Min. Energy: 320Wh
Initial internal resistance: ≤0.5mΩ
Nominal Voltage: 3.2V
Charging Cut-off Voltage: 3.65V
Discharging Cut-off Voltage:2.5V (T>0℃), 2.0V (T≤0℃)
Standard Charging Current: 50A(0.5C)
Max. Continuous charging/discharging Current: 100A 1.0C
Max. Pulse charging/discharging Current: 200A 2C(30S)
Cycle Life: 4000 Cycles @80% DOD
Charging Temperature: 0℃~55℃
Discharging Temperature: -20℃~55℃
Dimension: 118.5±0.50mm(H)*160±0.50mm(w)*50.1±0.5mm(T)
Weight: 1.98±0.05 kg
Encapsulation mode: U-shaped capsule
