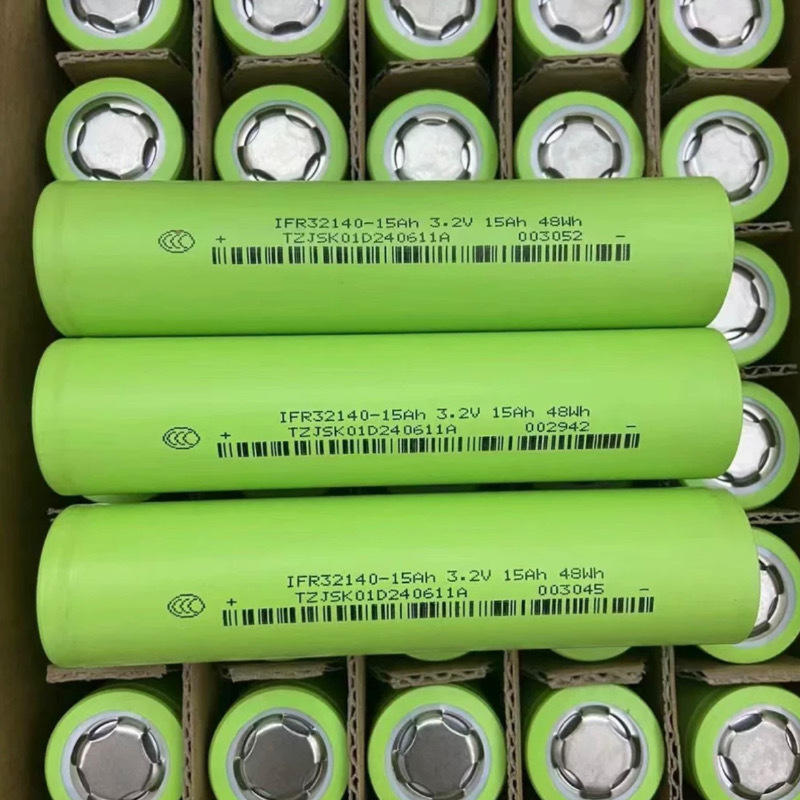

LiFePO4 Battery 15Ah 3.2V – High Capacity Cylindrical LFP Cell 48Wh
Suggested Products
The LiFePO4 15Ah 3.2V 48Wh High Capacity Cylindrical Lithium Iron Phosphate Cell is designed for high-performance solar energy storage, electric vehicles (EV), DIY battery packs, power tools, and backup power systems (UPS).
Key Features:
High Safety & Stability: LiFePO4 chemistry provides superior thermal and chemical stability, preventing overheating or explosion risks.
Long Cycle Life: Offers 2000+ deep discharge cycles while retaining over 80% capacity.
Consistent Output: Stable 3.2V nominal voltage output throughout discharge.
Eco-Friendly: Non-toxic, non-polluting, free from rare metals.
Specifications:
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Form Factor: Cylindrical Cell
Nominal Voltage: 3.2V
Nominal Capacity: 15Ah (15000mAh)
Energy Rating: 48Wh
Charging Cut-off Voltage: 3.65V
Discharge Cut-off Voltage: 2.5V
Max Continuous Discharge Current: 30A (2C)
Peak Discharge Current: 45A (3C)
Internal Resistance: ≤ 2.5 mΩ
Standard Charge Current: 3A (0.2C)
Fast Charge Current: 7.5A (0.5C)
Operating Temperature: Charge: 0°C to 45°C | Discharge: -20°C to 60°C
Weight: ~350g
Applications:
Ideal for Solar Power Systems, Inverters, Electric Cycles/Scooters, Portable Power Stations, Emergency Lighting, and Custom Series/Parallel Battery Packs (12V, 24V, 48V
).
